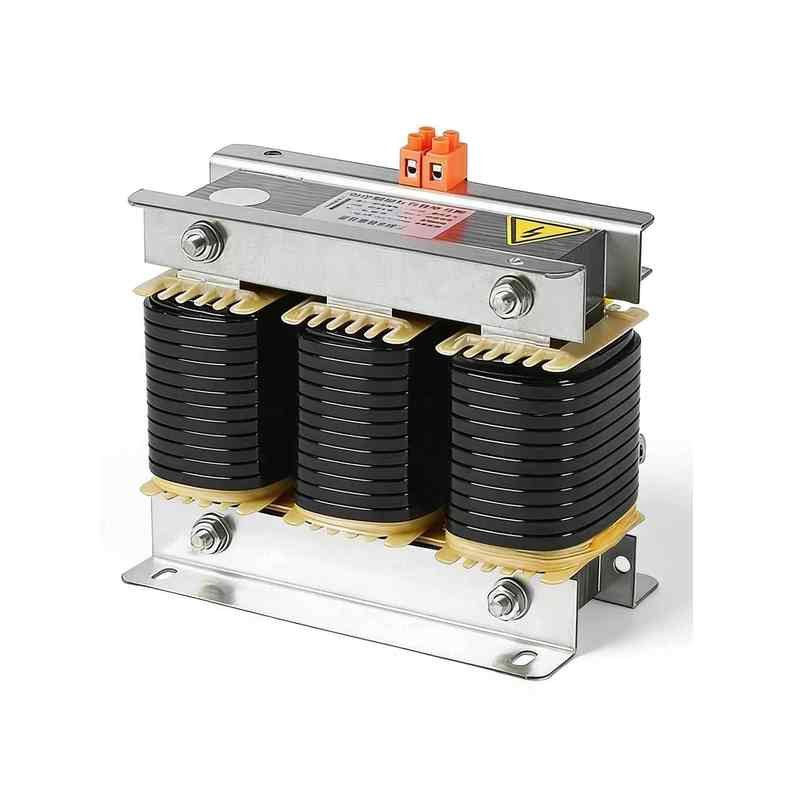

CKSG Series Filter Reactors
- Rated voltage (kV): 0.69, 0.525, 0.45, 0.4, etc.
- Reactance: 4.5%, 5%, 6%, 7%, 12%, 13%, etc.
- Insulation heat resistance class: B, F
- Insulation type: Dry type
Description
Main Functions
1.Connect in series with low-voltage shunt capacitors to suppress high-order harmonics in the power grid, avoid harmonic resonance and amplification, and protect capacitors and power distribution equipment.
2.Limit capacitor switching inrush current, reduce switching overvoltage, and extend the service life of capacitors.
3.Optimize voltage waveforms, lower harmonic distortion rate and improve power quality.
4.Increase system power factor and reduce harmonic interference to industrial control and instrument devices.
Application Scenarios
1.Matching use for low-voltage reactive power compensation cabinets and capacitor compensation devices.
2.Industrial plants and power distribution rooms with harmonic sources such as rectifiers, inverters and converters.
3.Power distribution systems of public buildings including shopping malls, office buildings, hospitals and data centers.
4.Power supply systems for automated production lines and precision processing equipment with high power quality requirements.
