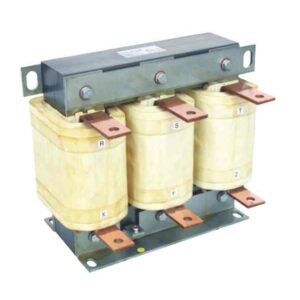

ACL/OCL Series Input and Output Reactors
- This series of reactors is designed for use with frequency converter equipment.
- Rated voltage kV: 0.4, 0.38
- Voltage drop V: 2.2, 4.4
- Insulation heat resistance grade: B, F
- Insulation type: Dry
Reactor
Reactors are mainly used to limit short-circuit current, suppress surge impacts and harmonic interference, stabilize grid voltage, improve power factor, and reduce line loss and equipment noise.
In frequency converters, reactive power compensation devices and new energy systems, they effectively protect power electronic components, compensate for the effects of long-line distributed capacitance, and enhance the stability and safety of electrical system operation.
They are widely applied in power distribution, industrial control, photovoltaic energy storage and various complete electrical equipment.
Showing all 3 results
-
-

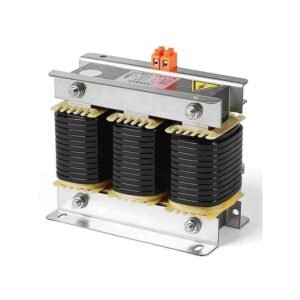

CKSG Series Filter Reactors
- Rated voltage (kV): 0.69, 0.525, 0.45, 0.4, etc.
- Reactance: 4.5%, 5%, 6%, 7%, 12%, 13%, etc.
- Insulation heat resistance class: B, F
- Insulation type: Dry type
-

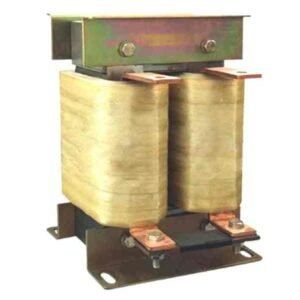

DCL Series DC Reactor
Single-phase reactors suppress harmonics, limit current surges, stabilize voltage, protect electrical equipment, and improve power quality.
Rated voltage (kV):500VDC-1000VDC.
Dielectric Strength: Core-Winding, AC 3000V/50Hz/5mA, in 10s, free of damage
Insulation Resistance: Core-Winding, DC1000V,Resistances＞1OOMΩ
Insulation heat resistance class: B, F
Insulation type: Dry type
