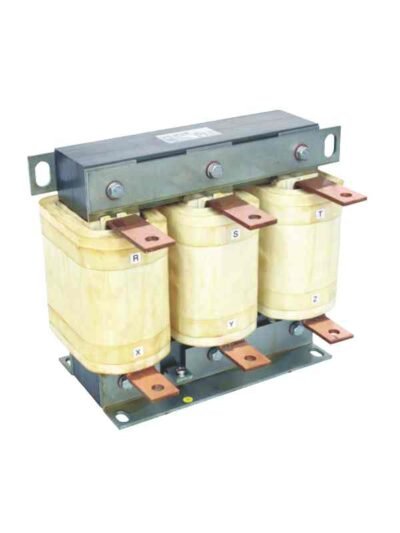

ACL/OCL Series Input and Output Reactors
- This series of reactors is designed for use with frequency converter equipment.
- Rated voltage kV: 0.4, 0.38
- Voltage drop V: 2.2, 4.4
- Insulation heat resistance grade: B, F
- Insulation type: Dry
Description
ACLSG series and OCLSG series three-phase dry-type inlet and outlet reactors are applied in power supporting equipment systems, supporting AC inverters in matching operation.
The inlet reactor is installed at the front end of the inverter to limit current impact caused by grid voltage surges and switching overvoltages, suppress harmonic interference, effectively protect the inverter and improve the power factor.
The outlet reactor is installed at the rear end of the inverter, mainly to compensate for the influence of long-line distributed capacitance, suppress output harmonic current, effectively reduce high-frequency current, protect the inverter and lower equipment noise.
